ATS Thermal Bypass Valve Up-Grade for 2010-2012 6.7L Cummins
ATS Billet Thermal Bypass Block Upgrade (P/N 310-005-2356)
Fits 2010-2012 RAM 2500/3500/4500/5500 6.7L Cummins

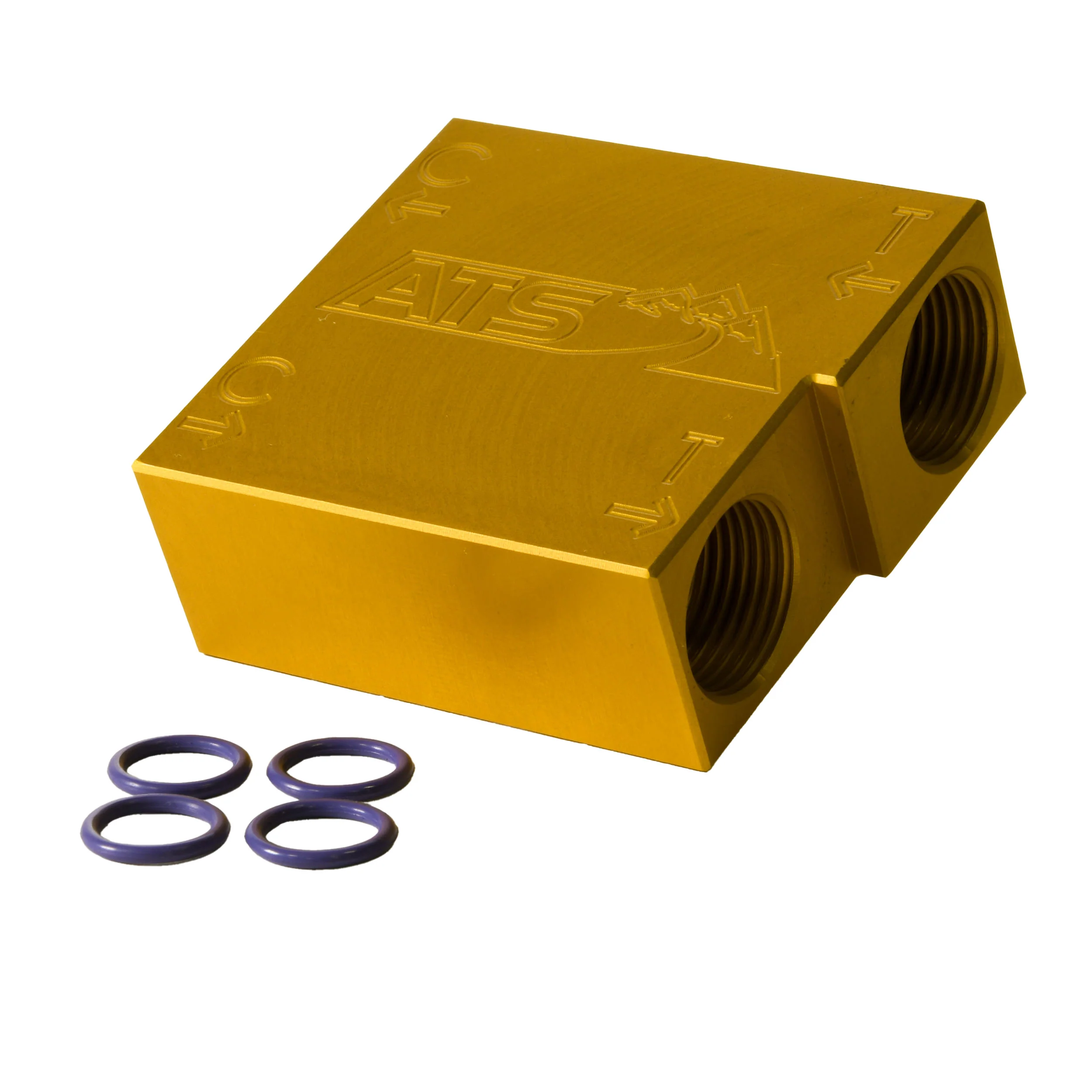

Protect your transmission from catastrophic heat failure with the ATS Thermal Bypass Block Upgrade (310-005-2356). For owners of 2010-2012 RAM 6.7L Cummins trucks equipped with the Max Tow Package (Sales Code AHQ) or the Dual Transmission Oil Cooler (Sales Code NHT), the factory thermal bypass block is a notorious failure point. This billet aluminum block is a complete, high-flow replacement for the OEM unit, ensuring 100% of your transmission fluid reaches the coolers at all times.
Whether you are running the 68RFE or the Aisin AS68RC, the factory block found in the 52014523AB assembly contains an internal thermostat that frequently sticks in the closed position. When this occurs, hot fluid is routed straight back into the transmission, skipping the cooling system entirely. The ATS upgrade solves this by providing a solid-flow billet block that eliminates the restrictive valve, keeping your fluid temps stable and your transmission clutches protected.
How to Identify If Your Truck Has This System
This upgrade is specifically designed for trucks equipped with advanced cooling options. You can confirm your truck needs this by checking these two locations:
- Driver’s Side Wheel Well: Look near the fuel filter by the engine block. If you see a square aluminum block where the transmission lines meet, you have the serviceable bypass block that this ATS unit replaces.
- In Front of the Radiator: If you have a secondary "mini" radiator mounted in front of the main cooling stack, your truck utilizes the thermal bypass system associated with the NHT or AHQ options.
Performance & Engineering Benefits
- ATS Part Number: 310-005-2356
- Direct OEM Block Replacement: This unit is a complete billet replacement for the factory block found in OEM Assembly 52014523AB.
- Prevent Transmission Failure: By removing the failure-prone internal thermostat, you eliminate the risk of the valve sticking closed, which is the primary cause of rapid transmission overheating.
- Maximum Cooling Efficiency: Engineered to allow unrestricted fluid volume to and from the transmission oil cooler, keeping your 6.7L Cummins within safe operating temperatures during heavy hauls.

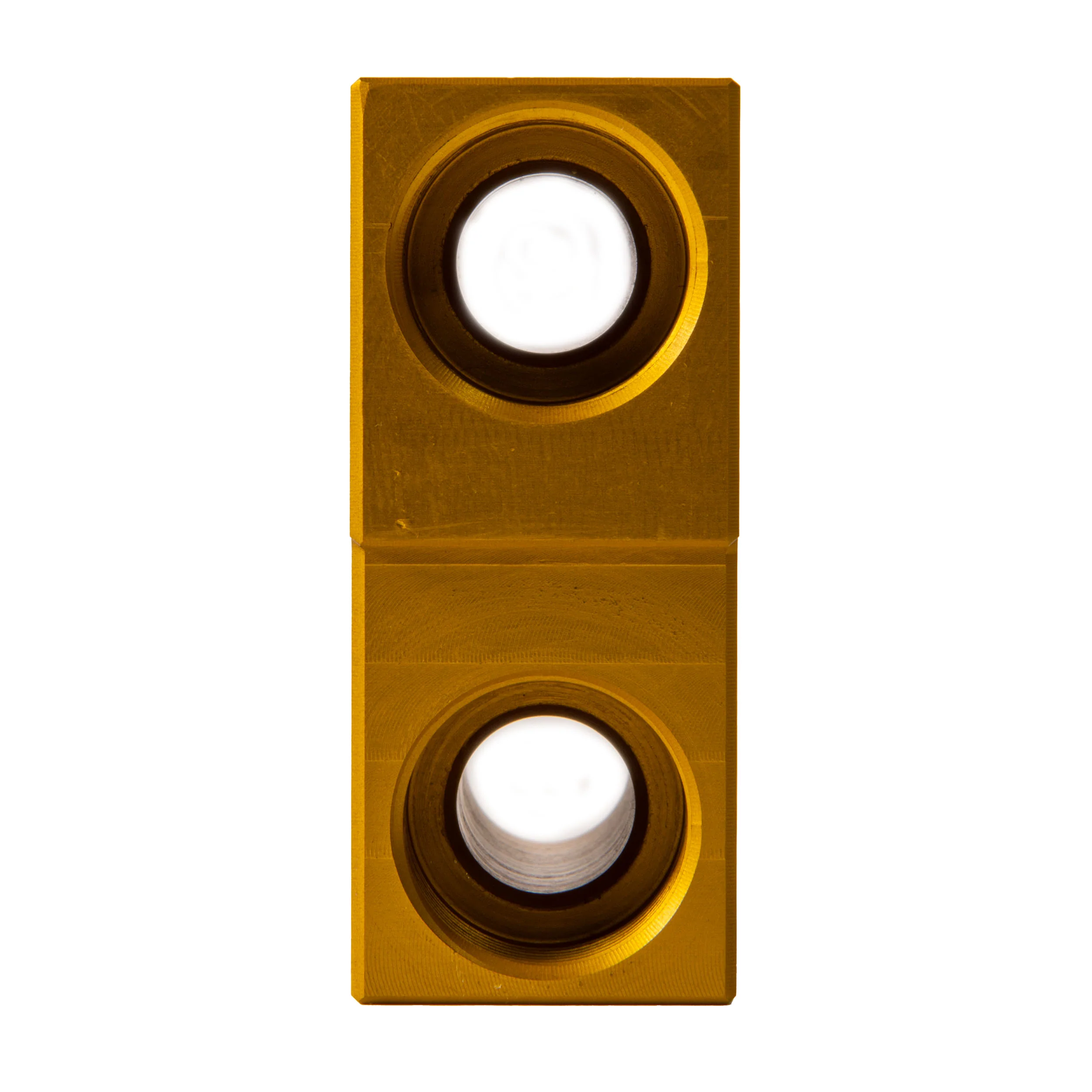

- Premium Billet Construction: CNC-machined for precision fitment and anodized for a professional look and superior corrosion resistance.

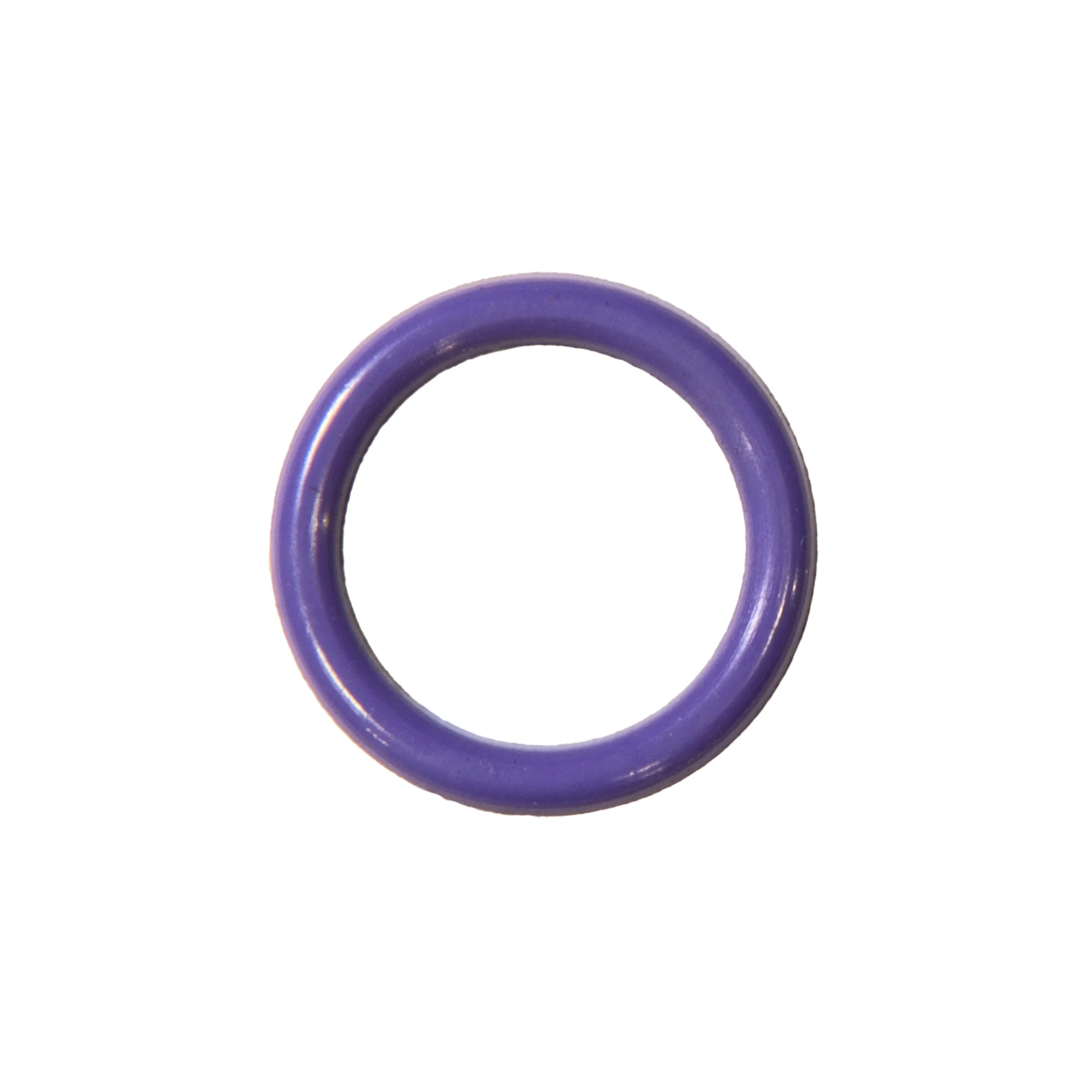

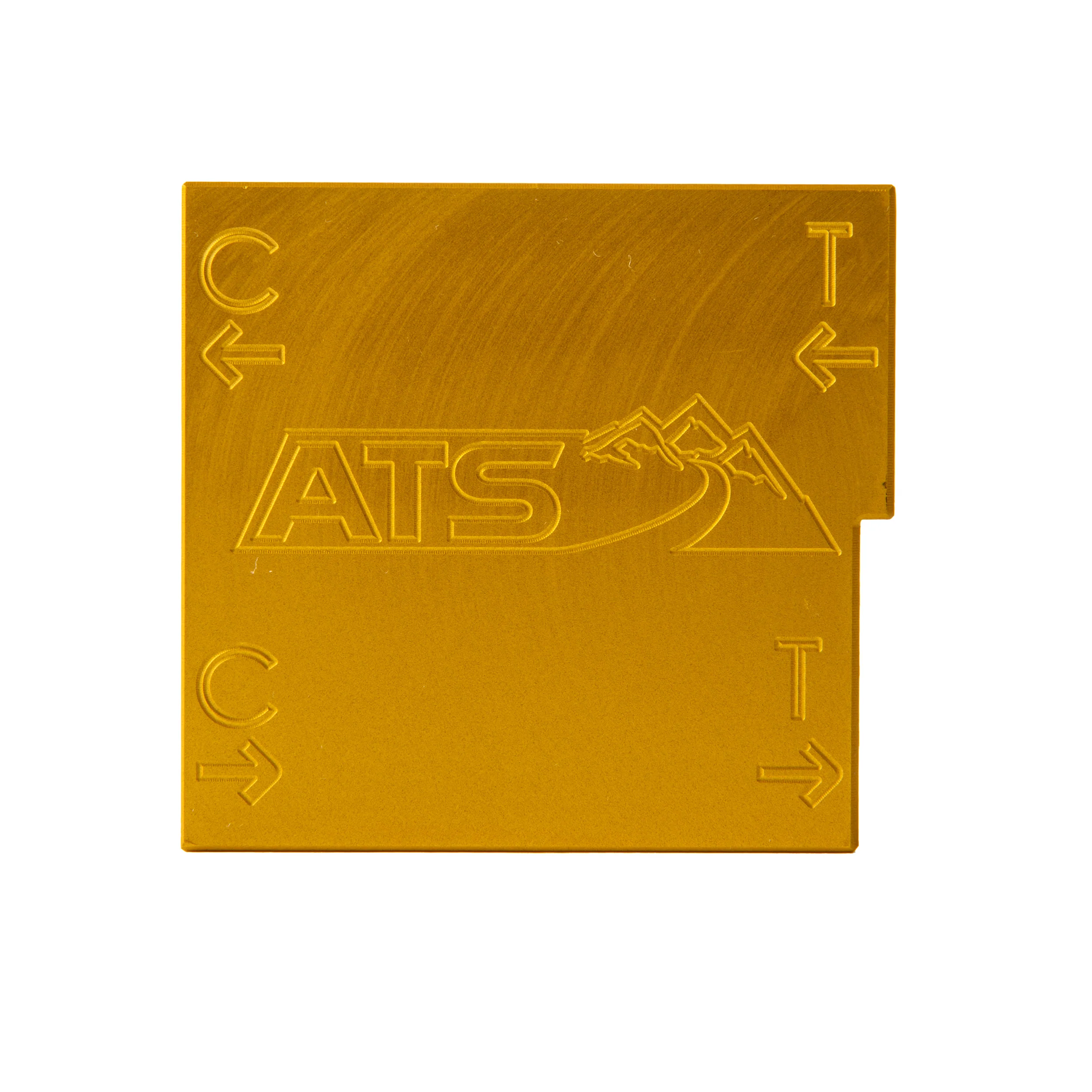

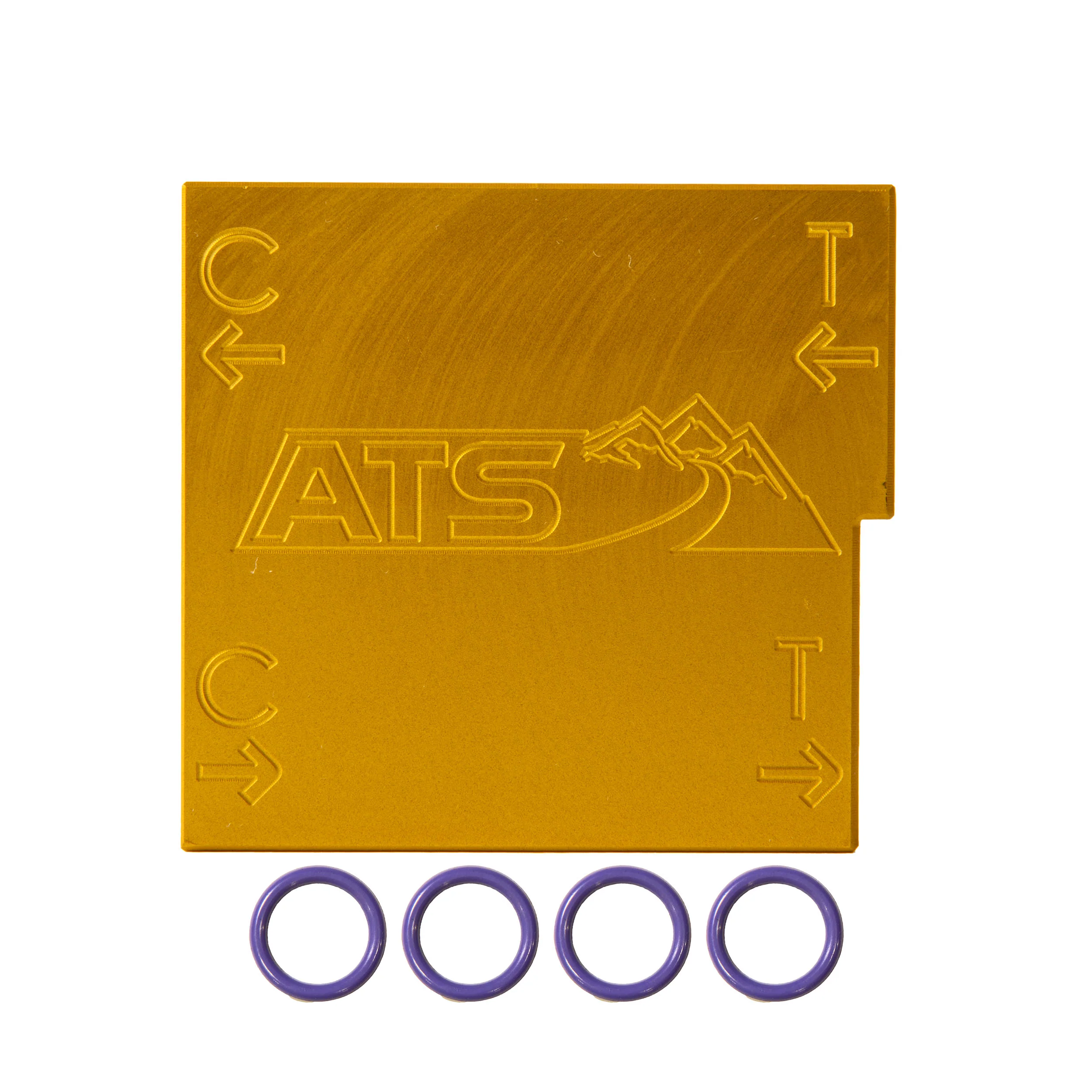

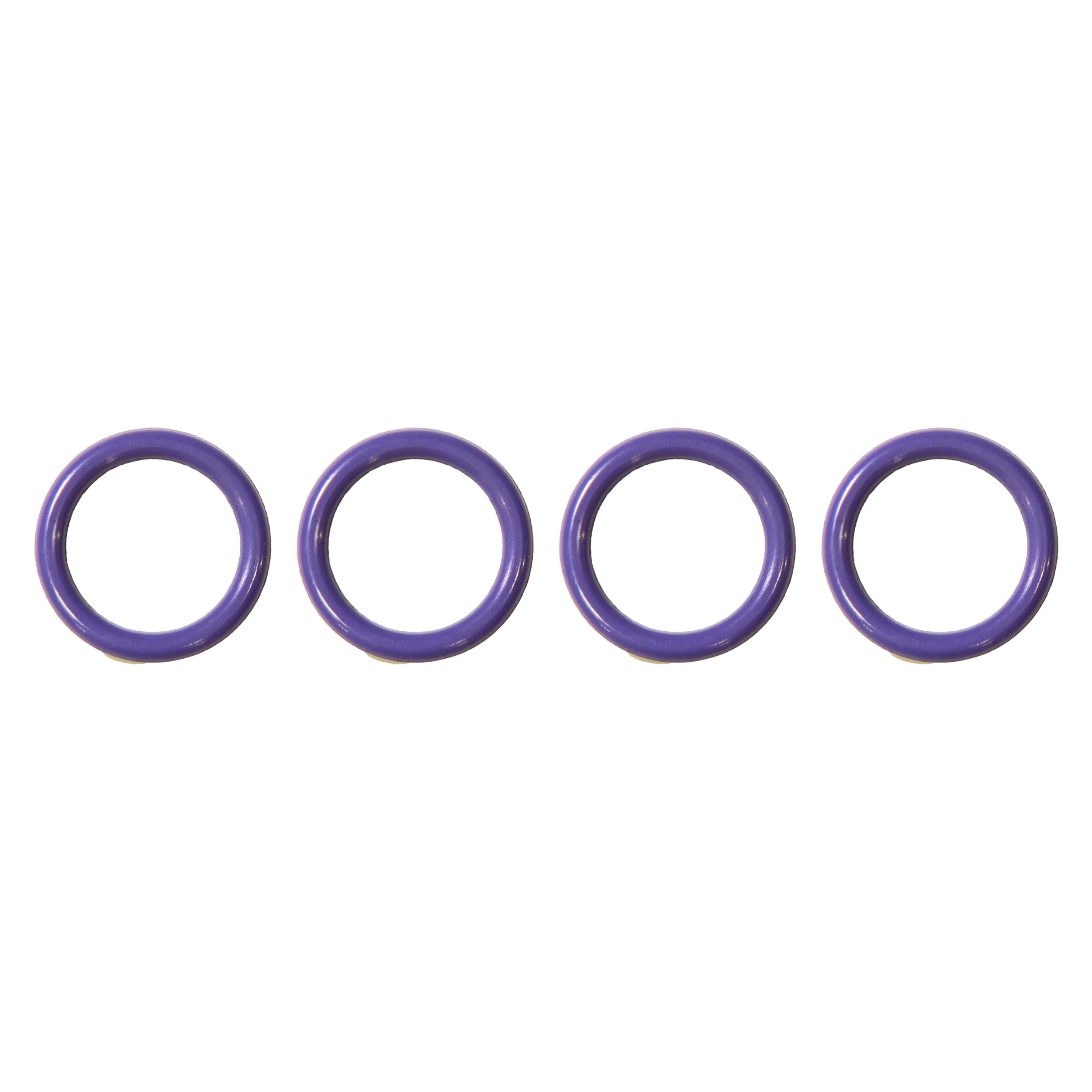

- Easy Installation: Features engraved flow marks for a clear-cut install and includes new replacement O-rings to ensure a guaranteed leak-free seal.
Vehicle Compatibility & Quick Specs
- Make: RAM / Dodge
- Years: 2010, 2011, 2012
- Engine: 6.7L Cummins Turbo Diesel
- Transmissions: 68RFE or Aisin AS68RC
- Relevant Sales Codes: AHQ (Max Tow Package) or NHT (Dual Transmission Cooler)
- Replaces OEM Part: Serviceable block in Assembly 52014523AB
Temperature Expectations (Post-Upgrade)
By enabling full-time fluid flow through your cooling stack, the ATS block (310-005-2356) drastically lowers operating temperatures. Expected results:
| Driving Condition | Factory Block Temp | ATS Upgraded Block Temp | Expected Drop |
|---|---|---|---|
| Empty (Highway) | 190°F – 200°F | 130°F – 150°F | 40°F – 60°F |
| Towing (Moderate) | 200°F – 215°F | 160°F – 180°F | 30°F – 40°F |
| Towing (Heavy / Grade) | 220°F+ | 180°F – 195°F | 25°F – 30°F |
The ATS Diesel Advantage
"Heat is the enemy of any heavy-duty transmission. The factory bypass block in 2010-2012 trucks with the AHQ or NHT options is a known bottleneck. Our billet replacement block ensures that your cooling system is always active, providing long-term reliability for your 68RFE or Aisin transmission."
